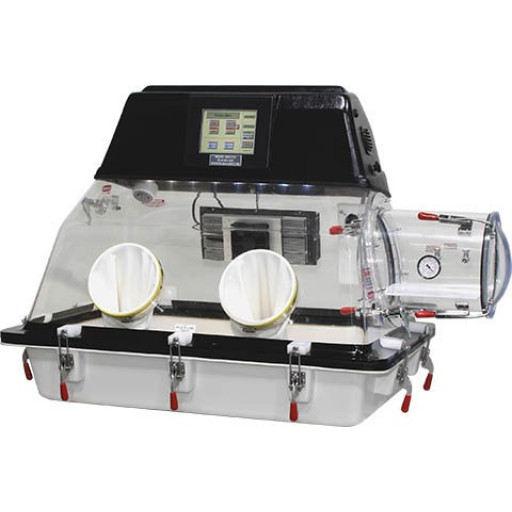

Plas Labs Temperature and Humidity Controlled Glove box 890-THC

Temperature and Humidity Controlled Glove Box

890-THC Specifications

Inside Dimensions
41"w x 28"d x 26"d
1,040mm x 710mm x 660mm h

Outside Dimensions, (Includes transfer chamber 12" long)
55"w x 35"d x 38"h
1,400mm x 890mm x 970mm h

Approximate Volume:
17.3 Cubic Feet. 489 Liters

Maximum Working Pressure:
6.0" W.C. (1.49 kPa)

Approximate Shipping Weight:
450 Pounds. 205 Kilos

890-Series
The NEW #890-THC accurately maintains temperature and humidity (Rh) inside a roomy single operator glove box. We also offer multiple operator units.
The unit is operated by merely touching the color control screen for the functions desired. It includes your private passwordprotected administrator controls. Touch screen viewing of the data logging function is included as well as serial port connection for data logging.
Automatic purging cycles can be programmed. The humidity range control accuracy is ± 3% Rh. Temperature can be regulated in either “F” or “C” degrees and the Peltier style thermoelectric assembly is accurate to ± 1 degrees C. Temperature range is from 16 to 44 degrees C.

Standard Features of the Temperature and Humidity Controlled Glove Box:

• Password protected, configurable “PID” controlled.
• Inert gas hookup capability.
• White ambidextrous HypalonTM gloves.
• Platinum RTD with sealing gland.
• Four (4) pre-set conditions.
• 24 hour one touch, on screen data logging.
• Room temperature and Rh read outs.
• Thermoelectric assembly (Peltier device).
• Nebulizer for the Rh system.
• The top section is one piece clear acrylic plastic for easy viewing. Four (4) key cock valves for purging. Two (2) on the main chamber and two (2) on the transfer chamber.
• 8” (203 mm) Color panel touch screen. Date and time display.
• Humidity (Rh) transmitter with 8 feet of sensor cable.
• Standard 24 month warranty (Not gloves or consumables).
• Serial port for external computer data logging & remote access.
• Transfer chamber is 11” (280 mm) I.D. x 12” (305 mm) long.
• “Bright Light” system (40,000 hour lamp guarantee).
