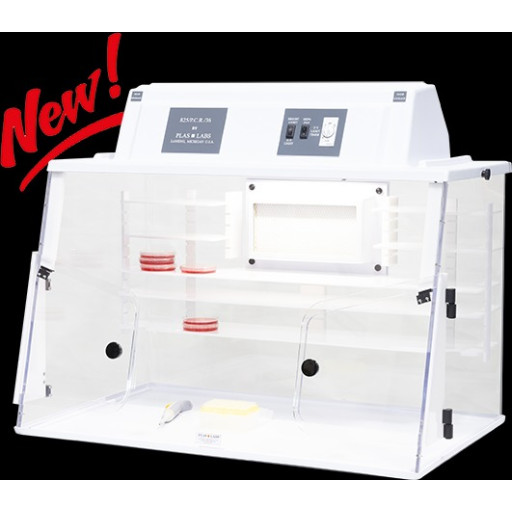

Plas Labs PCR Chamber 825-PCR/HEPA

PCR Chambers

825-PCR/HEPA Specifications

Inside Dimensions:
23.5"w x 17"d x 21"h
597mm x 432mm x 530mm

Outside Dimensions:
26"w x 23"d x 28" h
610mm x 457mm x 711mm

Shipping Weight:
112 Pounds
51 kilos

PLAS-LABS is excited to announce the arrival of our new PCR Chamber. The 36" wide 825-PCR/HEPA/36 is latest product to the line of PLAS-LABS' PCR Chambers. The 825-PCR/HEPA/36 includes many of the same features as our standard PCR Chambers, but includes nine (9) cubic feet of capacity, eight (8) adjustable interior shelves, larger HEPA filter, and extra large U.V. emiting light for increased sterilization. The #825-UVC is designed to help improve the accuracy of P.C.R. and general tissue culture procedures. The chance for air borne contamination during D.N.A. sequencing is greatly reduced.
The chamber is a “still air enclosure” which contains both our “Bright Light” illumination system and a U.V. germicidal lamp. The U.V. germicidal system is rated at 254 nm and will decontaminate all exposed surfaces in the interior. The lamp timer should be activated 15 minutes before and 15 minutes after each use. The front viewing panel and main housing are .375” (9.5 mm) thick optically clear material. This thickness helps to prolong the service life (about 2,500 operating hours) of the unit. The front viewing panel Catalog #825-UV(FS) is attached by six (6) screws and is easily and quickly replaced, if needed. Access to the interior of the chamber is gained by pulling swinging doors outward.
New self closing hinges have eliminated the need for locks. The doors are removable, therefore do not take up valuable lab counter space. If a corner door is accidently opened, proximity sensors turn off the U.V. system for operator safety.

Standard Features of the PCR Chambers:

• “Bright Light” illumination system (40,000 hour lamp guarantee).
• Two bright white plastic (adjustable) shelves. One is tooled to store pipettors.
• Front panel is .375” thick (9.5 mm) for Beta Ray protection. NOTE: Not Gamma Rays.
• Removable side access doors with slip apart hinges.
• Proximity sensors on doors for operator safety.
• Automatic timer to activate U.V. sterilization procedures.
• Bottom tray has a formed in place “spill guard” for easy cleaning.
• The U.V. system is rated at 254 nm.
• Standard 24 month warranty (Not gloves or consumables).
• Side and back walls are one piece formed optically clear acrylic .375” thick (9.5 mm).
• Main housing and top are removable for installation of large pieces of equipment.

Features of the 825-PCR/HEPA/36, 36" wide PCR Chamber

• Approximately nine (9) cubic feet of capacity. Able to accommodate nearly 200 plates.
• Eight (8) adjustable interior shelves.
• Extra large U.V. emitting light for increased sterilization.
• New larger HEPA filter and blower.
